Discontinued

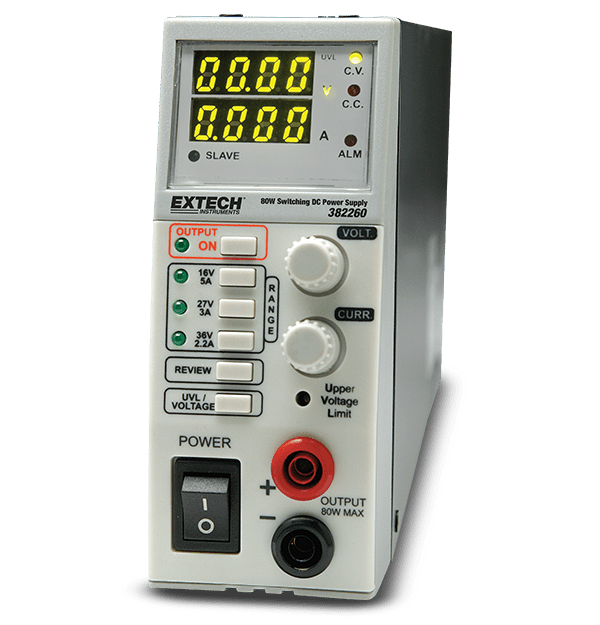

Extech 382260
80W Switching Mode DC Power Supply
Extech’s 382260 is an 80 W Switching Mode DC Power Supply. Its has three selectable output ranges that perform like three power supplies in one: 0 V to 16 V (0 A to 5 A), 0 V to 27 V (0 A to 3 A), and 0 V to 36 V (0 A to 2.2 A). This compact and lightweight unit provides easy portability and is ideal for tight workbenches with limited space. The 382260 features 4-Digit LED displays, front and rear output terminals, and remote sensing for accurate applied voltage at load point. Complete with AC Power cord.
仕様
| 一般仕様 | |
|---|---|
| リップルとノイズ | <30mVpp |
| 出力電圧 | 0.10 to 16.40V, 0.10 to 27.60V, 0.10 to 36.80V |
| 出力電圧の基本精度 | ±1% |
| 出力電流 | 0.100 to 5.100A, 0.100 to 3.100A, 0.100 to 2.300A |
| 出力電流の基本精度 | ±1% |
| 線間電圧調整 | <4mV |
| 負荷電圧制御 | <20mV |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 90-264VAC; 47-63Hz |
| 寸法 | 13 × 5 × 2" (330 × 127 × 53.5mm) |
| 認証 | CE |
| 重量 | 4.2lbs (1.9kg) |
