Discontinued

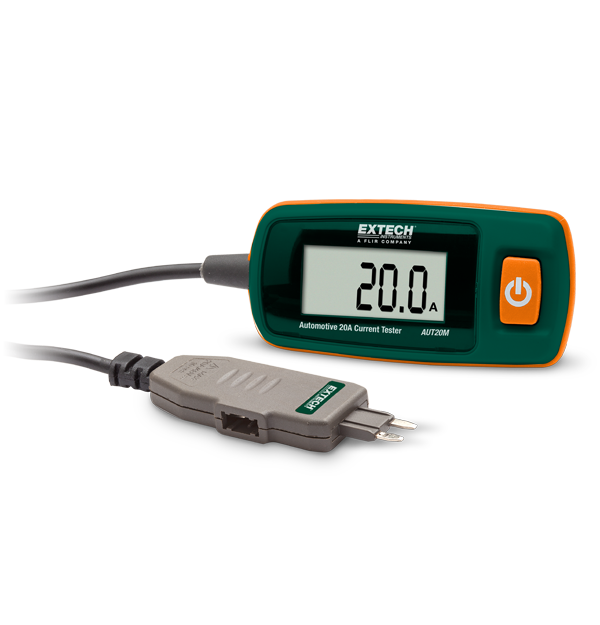

Extech AUT20M
20A Current Tester
Check up to 20 Amps without breaking the circuit with the Extech AUT20M Current Tester. Mini-blade connectors plug into the fuse block. It has a measuring range of 20 Amps/48 VDC (10 seconds max) with 10 mA resolution and ± a (2% + 2 digits) accuracy. Results are displayed on a 3.5-digit LCD. Includes 75 cm (29.5 in) connector cable.
仕様
| 一般仕様 | |
|---|---|
| DC電圧 | 48V DC |
| DC電流 | 0 to 20A DC |
| DC電流の基本精度 | ±(2.0% of reading + 2 digits) |
| DC電流の最大解像度 | 10mA |
| ケーブルの長さ | 71cm (2.3 ft.) |
| 検知距離 | <0.2" |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 1 × A23G (12V) battery |
| 寸法 | 159 × 25mm (6.25 × 1") |
| 認証 | CE |
| 重量 | 42g (1.5oz) |
