Discontinued

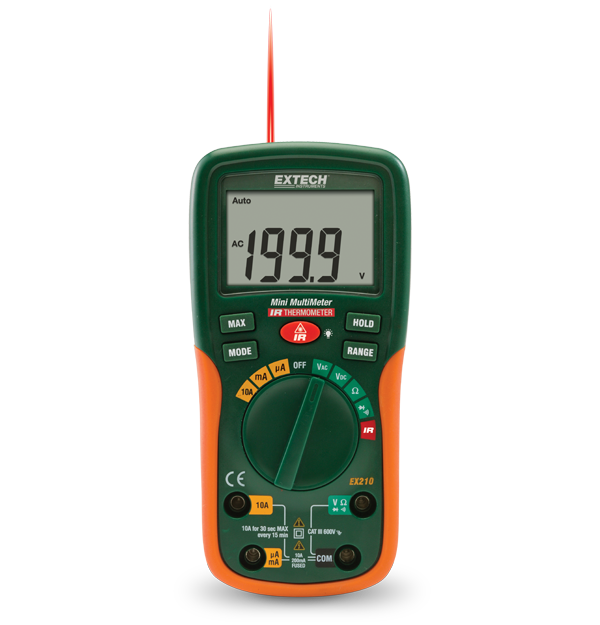

Extech EX210

8 Function Mini Digital MultiMeter with IR Thermometer

The Extech EX210 is a Mini Digital MultiMeter with a built in IR Thermometer. The meter can quickly identify overheating motors and locate hot spots on electrical panels or HVAC vents without contact. It measures AC/DC voltage, AC/DC current, resistance, and temperature (IR). The EX210’s rugged design incorporates a 2000 count large backlit dual LCD with easy to read digits, low current capability measure down to 0.1 µA, and input fuse protection. This meter also features max hold and data hold capabilities as well as auto power off. The EX210 comes complete with test leads and a 9 V battery.

仕様

一般仕様
AC電圧 0.1mV to 600V
AC電流 0.1 µA to 10A
DC電圧 0.1mV to 600V
DC電圧の基本精度 ±0.5%
DC電流 0.1 µA to 10A
ダイオード試験 Yes
導通 Yes
抵抗 0.1Ω to 20MΩ
温度(IR)の基本精度 -5 to 446 °F (-20 to 230 °C)
追加の詳細
保証 2 years
出力 1 × 9V battery
安全性カテゴリー CATIII - 600V
寸法 5.8 × 2.9 × 1.6" (147 × 76 × 42mm)
認証 CE, ETL
重量 9.17oz (260g)
