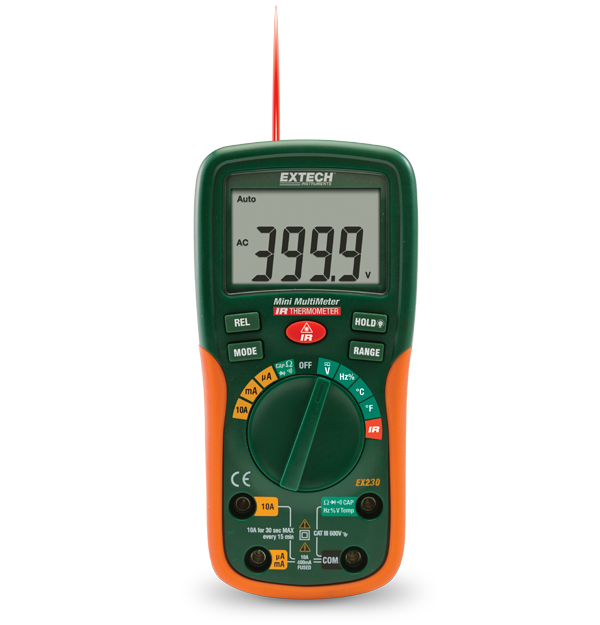

Extech EX230
12 Function Mini Digital MultiMeter with IR Thermometer
The Extech EX230 Mini Digital MultiMeter with built-in IR Thermometer can quickly identify overheating motors and locate hot spots on electrical panels or HVAC vents without contact. The EX230’s rugged design incorporates a 4000 count large backlit dual LCD with easy to read digits, low current capability measure down to 0.1 µA, and input fuse protection. The built in IR Thermometer has a 6:1 distance to target ratio. This meter also features Type K temperature, frequency, capacitance, and duty cycle measurement. It also has relative function, data hold capabilities, and an auto power off function. The EX230 comes complete with test leads, Type K Temperature bead probe, and a 9 V battery.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 0.1mV to 600V |
| AC電流 | 0.1µA to 10A |
| DC電圧 | 0.1mV to 600V |
| DC電圧の基本精度 | ±0.5% |
| DC電流 | 0.1µA to 10A |
| ダイオード試験 | Yes |
| 周波数 | 0.001Hz to 10MHz |
| 導通 | Yes |
| 抵抗 | 0.1Ω to 40MΩ |
| 温度（IR）の基本精度 | -5 to 446°F (-20 to 230°C) |
| 温度（タイプK）の最大分解能 | -4 to 1400°F (-20 to 760°C) |
| 負荷サイクル | 0.1% to 99.9% |
| 電気容量 | 0.01nF to 100µF |
| 追加の詳細 | |
|---|---|
| ディスプレイ | 4000-count segment LCD |
| 保証 | 2 years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIII - 600V |
| 寸法 | 5.8 × 2.9 × 1.6" (147 × 76 × 42mm) |
| 認証 | CE |
| 重量 | 9.17oz (260g) |
