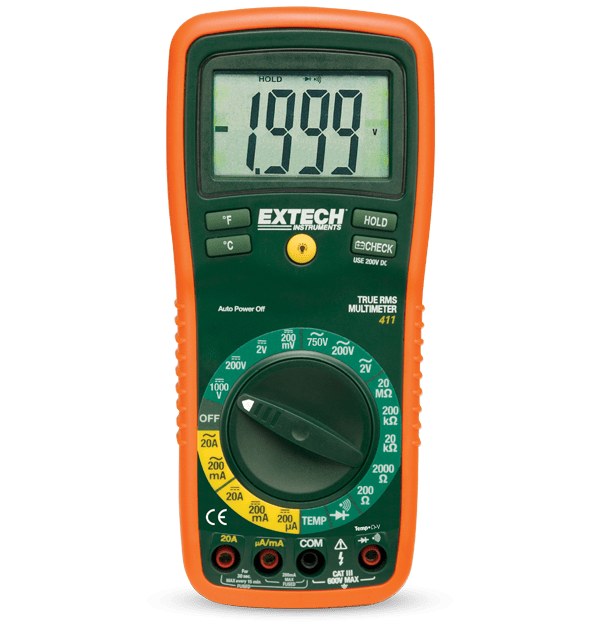

Extech EX411
8 Function True RMS Professional MultiMeter
This product is discontinued.
We recommend the Extech EX411A as a great replacement.
Need support with the Extech EX411? Check out our support resources below.
The Extech EX411 offers multiple functions so you can carry one meter into the field instead of several. The manual ranging EX411 measures AC/DC voltage and current, resistance, diode, and continuity, all with ± 0.5 percent basic accuracy. The unit has low current capability, measuring down to 0.1 µA, and features input fuse protection and misconnection warnings. A Type K thermometer is built in for surface or air temperature measurements. Comes with CAT III test leads, stand, hanging strap, holster with builti n test lead storage, Type K bead wire temperature probe, and battery.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 1mV to 750V |
| AC電圧の基本精度 | ±0.5% |
| AC電流 | 0.1mA to 20A |
| AC電流の基本精度 | ±0.5% |
| DC電圧 | 0.1mV to 1000V |
| DC電圧の基本精度 | ±0.3% |
| DC電流 | 0.1µA to 20A |
| DC電流の基本精度 | ±0.5% |
| ダイオード試験 | Yes |
| 導通 | Yes |
| 抵抗 | 0.1Ω to 20MΩ |
| 温度（タイプK）の最大分解能 | -4 to 1382 °F (-20 to 750 °C) |
| 真の実効値 | Yes |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIII - 600V, CATIV - 1000V |
| 寸法 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| 認証 | UL |
| 重量 | 0.75lbs (342g) |
