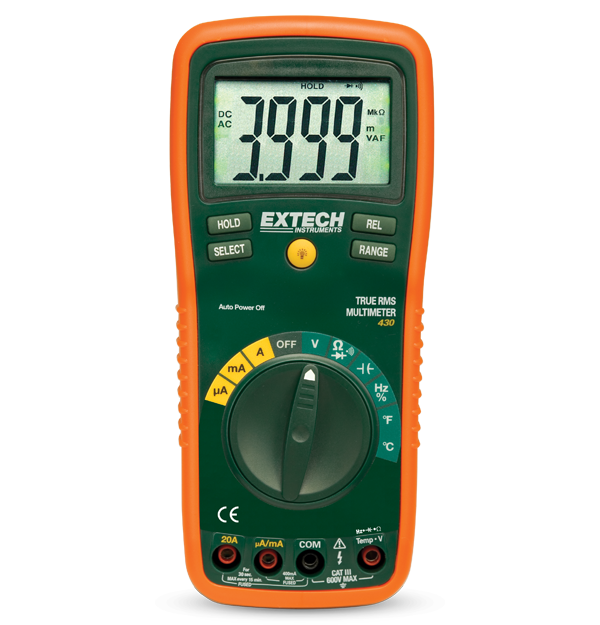

Extech EX430
11 Function True RMS Professional MultiMeter
This product is discontinued.
We recommend the Extech EX430A as a great replacement.
Need support with the Extech EX430? Check out our support resources below.
The Extech EX430 True RMS Autoranging Multimeter is a professional grade, True RMS Multimeter capable of performing a wide range of measurements. Functions include AC/DC voltage to 600 V, AC/DC current to 20 A, resistance to 40 M, continuity, and diode test. It also includes a Type K thermometer function for contact or air temperature measurements from -20°C to 750°C (-4°F to 1832°F). Advanced functions include capacitance, frequency, and duty cycle. The meter comes complete with test leads, Type K temperature probe, 9 V battery, protective holster, adjustable tilt stand, and velcro hanging strap.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 0.1mV to 750V |
| AC電流 | 0.1µA to 20A |
| DC電圧 | 0.1mV to 1000V |
| DC電圧の基本精度 | ±0.3% |
| DC電流 | 0.1µA to 20A |
| ダイオード試験 | Yes |
| 周波数 | 0.001Hz to 10MHz |
| 導通 | Yes |
| 抵抗 | 0.1Ω to 40MΩ |
| 温度（タイプK）の最大分解能 | -4 to 1382°F (-20 to 750°C) |
| 真の実効値 | Yes |
| 負荷サイクル | 0.1% to 99.9% |
| 電気容量 | 0.01nF to 100µF |
| 追加の詳細 | |
|---|---|
| 保証 | 3 years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIII - 600V, CATIV - 1000V |
| 寸法 | 7.4 × 3.2 × 2" (187 × 81 × 50mm) |
| 認証 | UL |
| 重量 | 0.75lbs (342g) |
