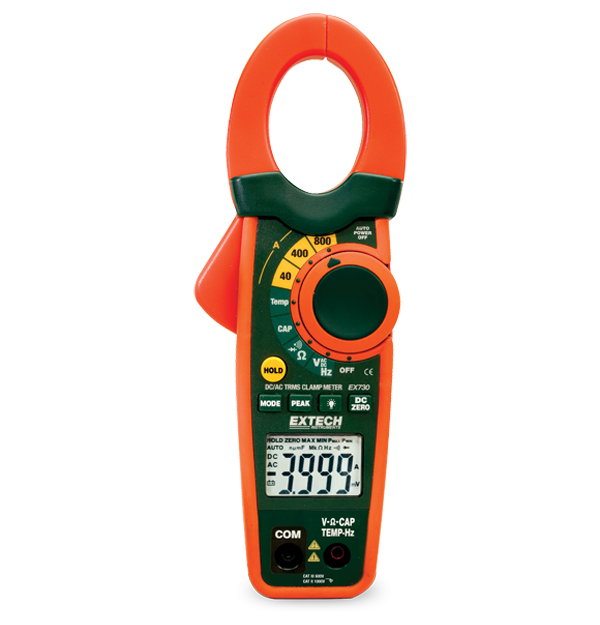

Extech EX730
800A AC/DC Clamp Meter
The Extech EX730 is an 800 A AC Clamp Meter with capacitance and frequency functions. It is capable of measuring AC/DC current and voltage, resistance, frequency, capacitance, temperature, diode, and continuity. The EX730 features double molded housing for better grip and one-handed operation, as well as a large LCD display with bright backlighting. The EX730 has a 30 mm (1.2 in) circular jaw opening for large cables (500 MCM) and comes complete with test leads, 9 V battery, Type K bead wire probe, and carrying case.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 0.1mV to 600V |
| AC電圧の基本精度 | ±1.5% |
| AC電流 | 0.01 to 800A |
| AC電流の基本精度 | ±2.5% |
| DC電圧 | 0.1mV to 600V |
| DC電圧の基本精度 | ±1.5% |
| DC電流 | 0.1 to 800A |
| DC電流の基本精度 | ±2.5% |
| ジョーサイズ | 1.2" (30mm), conductors up to 500MCM |
| ダイオード試験 | Yes |
| 周波数 | 0.001 to 4kHz |
| 周波数の基本精度 | ±1.5% |
| 導通 | Yes |
| 抵抗 | 0.1 to 40MΩ |
| 温度（タイプK）の最大分解能 | -4 to 1400°F (-20 to 760°C) |
| 温度（タイプN） | ±(3% of reading + 9°F/5°C) |
| 真の実効値 | Yes |
| 突入電流 | Yes |
| 電気容量 | 0.001nF to 40,000µF |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIII - 600V |
| 寸法 | 9 × 3.1 × 1.9" (229 × 80 ×49mm) |
| 認証 | CE, UL |
| 重量 | 10.7 oz (303g) |
