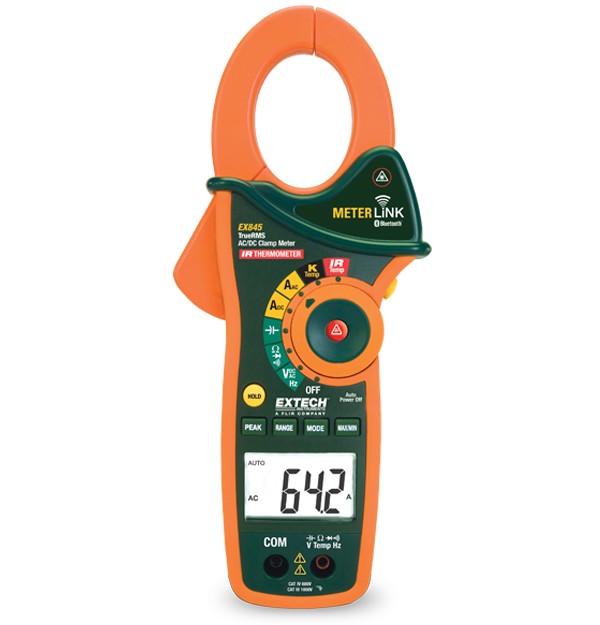

Extech EX845
1000A AC/DC True RMS Clamp/DMM with IR Thermometer and Bluetooth MeterLink™
The Extech EX845 is a CAT IV True RMS 1000 A AC/DC clamp meter/multimeter with a built in IR Thermometer and wireless capability. The MeterLink™ Bluetooth transmitter wirelessly transmits voltage and current readings to selected FLIR thermal imaging IR cameras in order to incorporate meter readings with thermal images. Manual data collection results in unnecessary complexity and risk. MeterLink eliminates this problem by allowing the thermographer to quickly take a current reading on an electrical target and associate those readings with the corresponding targets stored in an infrared image. Complete with CAT IV test leads, 9 V battery, Type K probe, pouch case, and Professional Test Lead Set.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 0.1mV to 1000V |
| AC電圧の基本精度 | ±1.5% |
| AC電流 | 0.1 to 1000A |
| AC電流の基本精度 | ±2.8% |
| DC電圧 | 0.1mV to 1000V |
| DC電圧の基本精度 | ±2.8% |
| DC電流 | 0.1 to 1000A |
| DC電流の基本精度 | ±2.8% |
| ジョーサイズ | 1.7" (43mm), conductors up to 750MCM or two 500MCM |
| ダイオード試験 | Yes |
| 周波数 | 0.001kHz to 4kHz |
| 周波数の基本精度 | ±1.5% |
| 導通 | Yes |
| 抵抗 | 0.1 to 40MΩ |
| 温度（IR）の基本精度 | -58 to 518°F (-50 to 270°C) |
| 温度（IR）の最大分解能 | ±2.0% of reading or ±4°F/±2°C |
| 温度（タイプK）の最大分解能 | -4 to 1400°F (-20 to 760°C) |
| 温度（タイプN） | ±(3% of reading + 9°F/5°C) |
| 真の実効値 | Yes |
| 突入電流 | Yes |
| 電気容量 | 0.001nF to 40,000µF |
| 追加の詳細 | |
|---|---|
| 保証 | 3 years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIII - 1000V, CATIV - 600V |
| 寸法 | 10.6 × 4.3 × 2" (270 × 110 × 50mm) |
| 認証 | CE, ETL |
| 重量 | 13.6oz (386g) |
