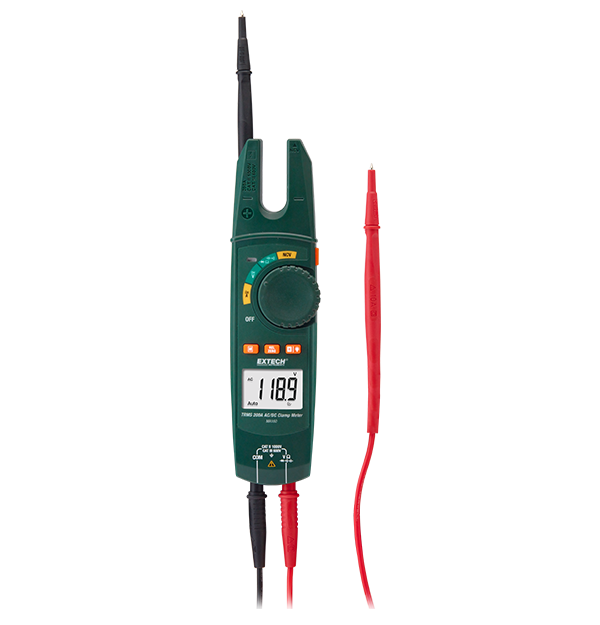

Extech MA160
True RMS 200A AC/DC Open Jaw Clamp Meter
The Extech MA160 is an open jaw True RMS 200 A AC/DC Clamp Meter. Its open jaw design provides quick current measurements in tight locations without breaking the circuit. True RMS provides accurate readings on noisy, distorted, or non-sinusoidal waveforms. The convenient built in non contact voltage (NCV) detector allows quick detection of live voltages while the LED backlight and flashlight help take measurements in dimly lit environments. The MA160 also features AC voltage to 750 V, DC voltage to 1000 V, resistance, capacitance, continuity, and diode test as well as an auto power off and ergonomic housing with built in test lead holders. Complete with test leads, two AA batteries, and pouch.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 750V |
| AC電圧の基本精度 | ±(2.5% of reading + 3 digits) |
| AC電圧の最大解像度 | 1mV |
| AC電流 | 200A |
| AC電流の基本精度 | ±(2.5% of reading + 5 digits) |
| AC電流の最大解像度 | 0.1A |
| DC電圧 | 1000V |
| DC電圧の基本精度 | ±(0.8% of reading + 3 digits) |
| DC電圧の最大解像度 | 1mV |
| DC電流 | 200A |
| DC電流の基本精度 | ±(2.5% of reading + 5 digits) |
| DC電流の最大解像度 | 0.1A |
| ジョーサイズ | 0.57" (14.5mm) |
| ダイオード試験 | Yes |
| 導通 | Yes |
| 抵抗 | 60MΩ |
| 抵抗の最大解像度 | 0.1Ω |
| 真の実効値 | Yes |
| 電気容量 | 60mF |
| 静電容量最大解像度 | 0.01nF |
| 非接触電圧（NCV）検出器 | 100 to 750V |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 2 × AA (1.5V) batteries |
| 安全性カテゴリー | CATIII - 600V |
| 寸法 | 8.3 × 2.1 × 1.4" (210 × 53 × 35mm) |
| 認証 | CE, ETL |
| 重量 | 5.8oz (164g) |
