Discontinued

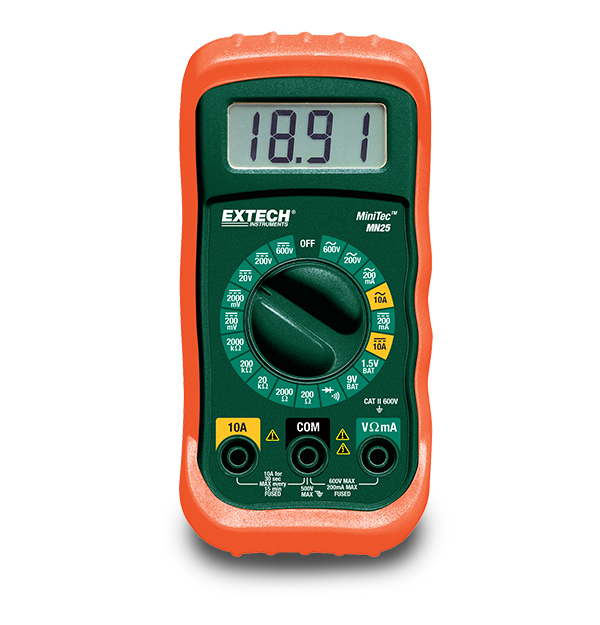

Extech MN25
MiniTec™ Digital MultiMeter
The Extech MN25 MiniTec™ Digital Multimeter has a large, 2,000 count LCD display with a 10 A fuse protection. This meter reads the AC/DC voltage and current, resistance, diode, and continuity. It is capable of running a 1.5 V and 9 V battery test function, and it comes with an overload protection feature with the overload indication signal. This rugged, pocket sized meter is manual ranging and runs eight different functions. The MN25 comes complete with a protective holster, stand, one 9 V battery, and the needed test leads.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 200 V, 600 V |
| AC電圧の基本精度 | ±1.5% |
| AC電圧の最大解像度 | 0.1 V |
| AC電流 | 200 mA, 10 A |
| AC電流の基本精度 | ±1.8% |
| AC電流の最大解像度 | 1 µA |
| DC電圧 | 200 mV, 2000 mV, 20 V, 200 V, 600 V |
| DC電圧の基本精度 | ±0.5% |
| DC電圧の最大解像度 | 0.1 mV |
| DC電流 | 200 mA, 10 A |
| DC電流の基本精度 | ±1.2% |
| DC電流の最大解像度 | 1 µA |
| ダイオード試験 | Yes |
| バッテリー試験 | 9 V, 1.5 V |
| 導通 | Yes |
| 抵抗 | 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ |
| 抵抗の最大解像度 | 0.1 Ω |
| 追加の詳細 | |
|---|---|
| 保証 | 1 year |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATII - 600V |
| 寸法 | 4.8 × 2.4 × 1.6" (122 × 61 × 40 mm) |
| 認証 | UL |
| 重量 | 9.17 oz (260 g) |
