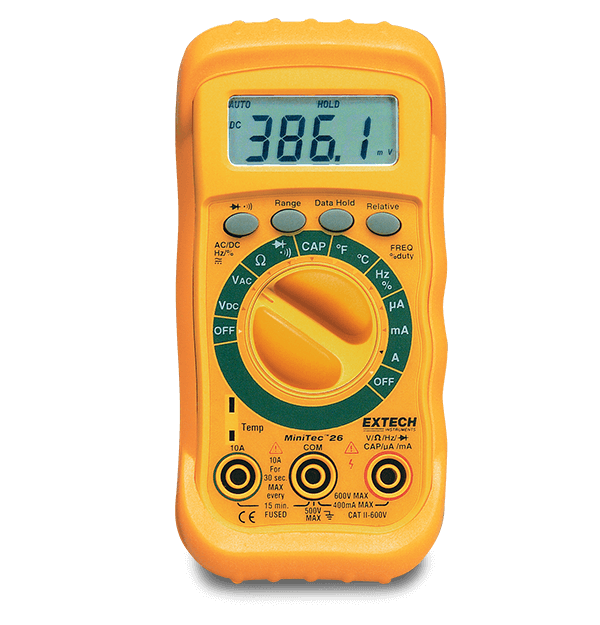

Extech MN26T

MiniTec™ Autoranging Digital MultiMeter

Small on size, big on versatility, the autoranging Extech MN26T MiniTec™ Digital Multimeter is equipped with extensive capabilities, making it a popular choice for technicians, electrical hobbyists/tinkerers, and DIYers alike. You can use the MN26T the way you would use a bigger meter, but you can also keep it with you for quick testing, on the road repairs, or in the field service calls. Use it to measure AC/DC voltage and current, as well as resistance, capacitance, frequency, and duty cycle. Test diodes and continuity, and use functions like data hold and relative mode. Even measure temperature with the supplied Type K bead wire temperature probe. The 4 digit, 4,000 count display is easy to read, and the built in tilt stand is handy for bench work. Comes with test leads, Type K thermocouple probe, two AAA batteries, and carrying case.

仕様

一般仕様
AC電圧 600V
AC電圧の基本精度 ±1.5%
AC電圧の最大解像度 0.1mV
AC電流 10A
AC電流の基本精度 ±1.8%
AC電流の最大解像度 0.1µA
DC電圧 600V
DC電圧の基本精度 ±1.0%
DC電圧の最大解像度 0.1mV
DC電流 10A
DC電流の基本精度 ±1.5%
DC電流の最大解像度 0.1µA
ダイオード試験 Yes
デューティサイクルの基本精度 ±1.2%
周波数 10MHz
周波数の基本精度 ±1.5%
周波数の最大分解能 0.001Hz
導通 Yes
抵抗 40MΩ
抵抗の最大解像度 0.1Ω
温度(タイプK)の最大分解能 0 to 1400 °F (1 °), 0 to 760 °C
温度(タイプN) ±3.0%
温度(タイプN)の基本精度 1 °
負荷サイクル 0.1% to 99.9% (0.1%)
電気容量 200ΩF
静電容量最大解像度 0.001nF
追加の詳細
ディスプレイ 4000-count segment LCD
保証 2 years
出力 2 × AAA (1.5V) batteries
安全性カテゴリー CATII - 600V
寸法 4.8 × 2.4 × 1.6" (122 × 61 × 40mm)
認証 CE, ETL
重量 9.17oz (260g)
