Discontinued

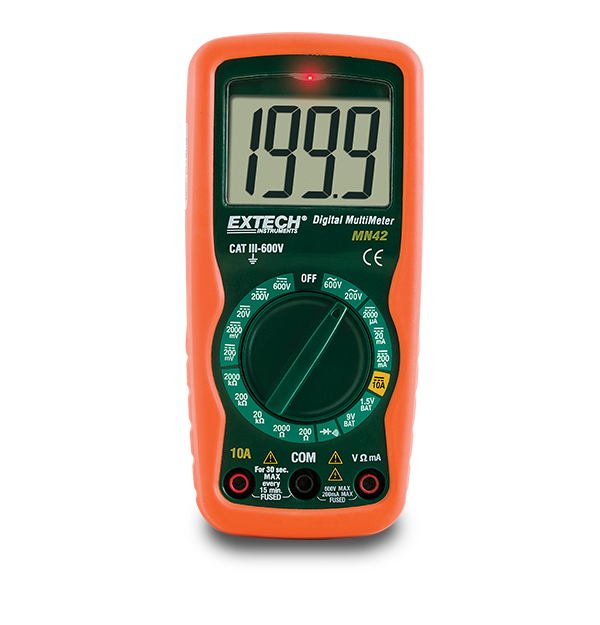

Extech MN42
8 Function Compact MultiMeter + NCV
The compact, manual-ranging Extech MN42 Compact Multimeter is equipped with capabilities a tradesman or technician can use every day, while also perfect for any hobbyist, hacker/maker, or DIYer working on home improvement and A/V projects. Also included is a built in, non contact voltage detector (from 100 VAC to 600 VAC). Freely measure AC/DC voltage, DC current, and resistance, as well as conduct continuity, diode, and battery test. Complete with test leads, 9 V battery, and carrying case.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 600V |
| AC電圧の最大解像度 | 0.1V |
| DC電圧 | 600V |
| DC電圧の最大解像度 | 0.1mV |
| DC電流 | 10A |
| DC電流の最大解像度 | 1µA |
| ダイオード試験 | Yes |
| バッテリー試験 | 1.5V / 9V |
| 導通 | Yes |
| 抵抗 | 2MΩ |
| 抵抗の最大解像度 | 0.1Ω |
| 非接触電圧（NCV）検出器 | 100 to 600VAC |
| 追加の詳細 | |
|---|---|
| ディスプレイ | 2000-count segment LCD |
| 保証 | 2 years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIII - 600V |
| 寸法 | 5.9 × 2.75 × 1.8" (150 × 70 × 48mm) |
| 認証 | CE |
| 重量 | 9oz (255g) |
