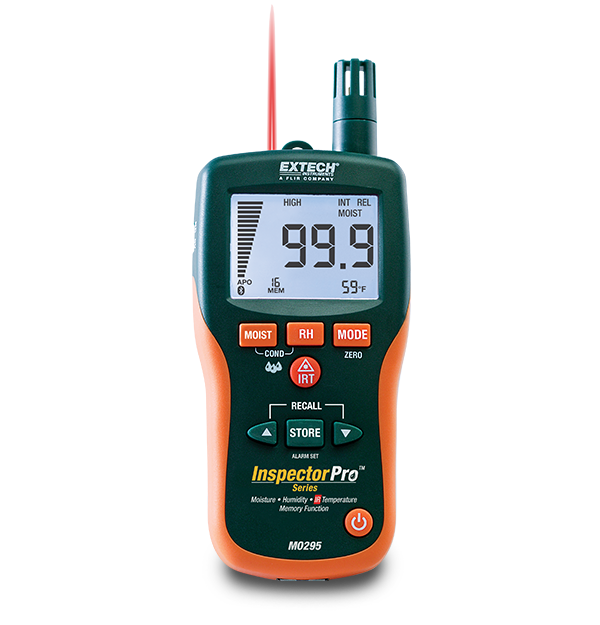

Extech MO295
Pinless Moisture Psychrometer + IR Thermometer
The Extech MO295 is an 8 in 1 meter that combines a pin/pinless Moisture Psychrometer with a built-in Infrared (IR) Thermometer. This pinless moisture sensor allows users to measure moisture in various types of wood and building materials with virtually no surface damage, and the remote pin-type probe can be used for contact moisture readings in hard to reach areas. The built in humidity and temperature probe measures relative humidity, air temperature plus grains per pound (GPP), dew point (DP), and vapor pressure. MO295 can store and recall 20 readings in memory. It also features a fast analog bargraph for viewing moisture trends, programmable high/low moisture and humidity alarms, automatic calculation of differential temperature to determine condensation point, min/max function, data hold, and an auto power off function. Comes with a pin moisture probe (MO290-P), one 9 V battery, carrying case, and user manual. Optional specialty moisture probes are available.
仕様
| 一般仕様 | |
|---|---|
| WME水分含有量の基本精度（ピン） | ±5% |
| WME水分含有量の最大分解能（ピン） | 0.1 |
| WME水分含有量（ピン） | 0 to 99.9% |
| センサータイプ | Replaceable threaded contact pins, non-penetrating electromagnetic sensor pad |
| ターゲットまでの距離率 | 8:1 |
| メモリ | Manually store/recall 20 data readings |
| 放射率 | 0.95 fixed |
| 水蒸気 | 0 to 999gpp (0 to 160g/kg) |
| 温度 (大気) | -20 to 170 °F (-29 to 77 °C) |
| 温度（IR）の基本精度 | -4 to 392 °F (-20 to 200 °C) |
| 温度（IR）の最大分解能 | ±3.5% or ±9°F(4.5°C) whichever greater |
| 温度（RTD） | 0.1°F/°C |
| 温度（大気）の基本精度 | ±3.6°F (2.0°C) |
| 温度（大気）の最大解像度 | 0.1°F/°C |
| 測定深さ | up to 0.75" (19mm) |
| 相対水分含有量の最大分解能（ピンレス） | 0.1 |
| 相対水分含有量（ピンレス） | 6 to 99.9 |
| 相対湿度 | 0 to 100% |
| 相対湿度の基本精度 | ±3% |
| 蒸気圧 | 0 to 20.0kPA |
| 露点 | -22 to 199 °F (-30 to 100 °C) |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 1 × 9V battery |
| 寸法 | 6.5 × 2.8 × 1.5" (165 × 70 × 38) |
| 認証 | CE |
| 重量 | 7.4oz (210g) |
