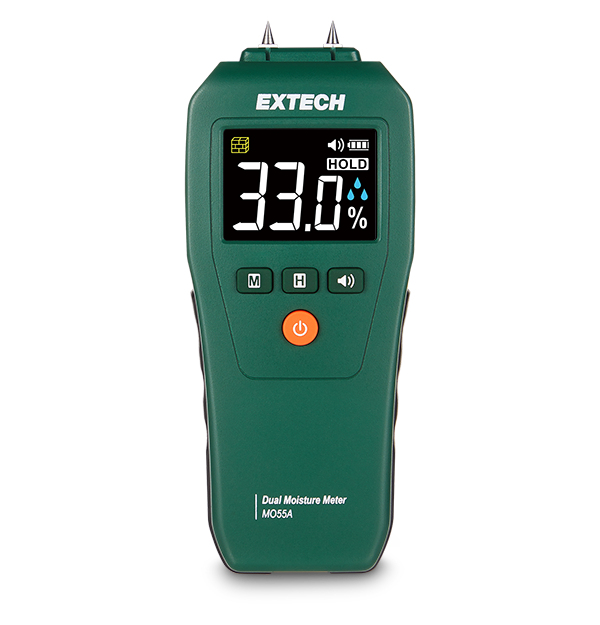

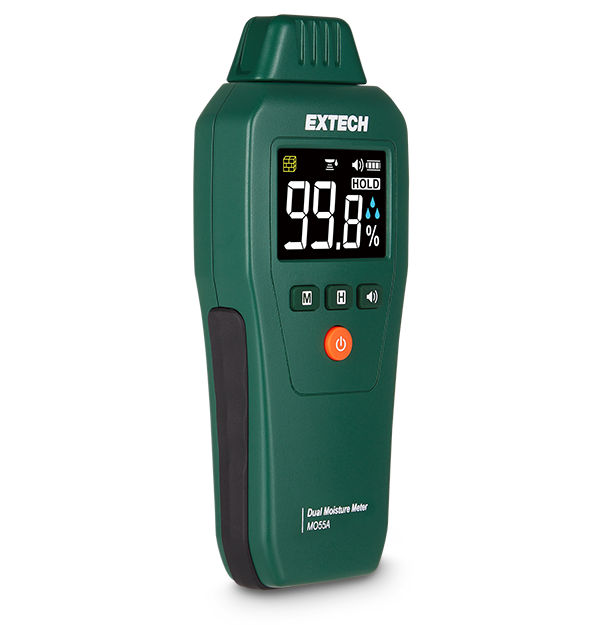

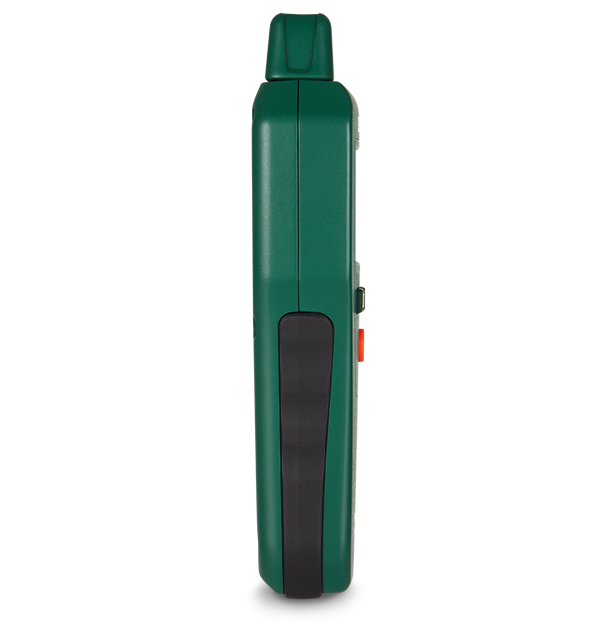

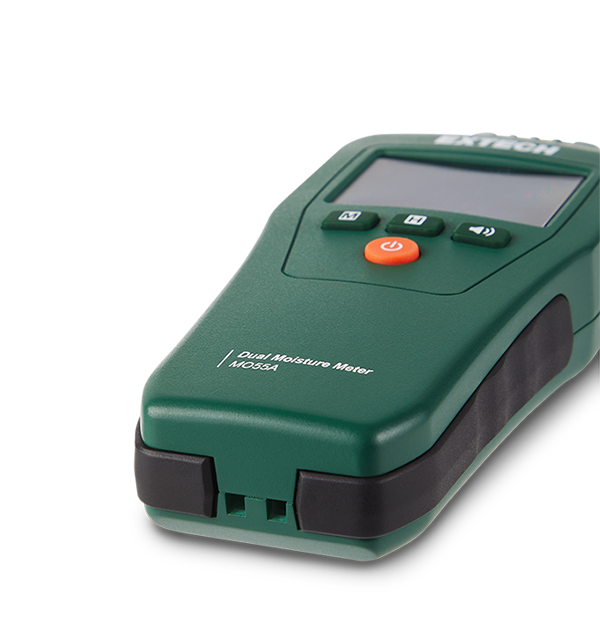

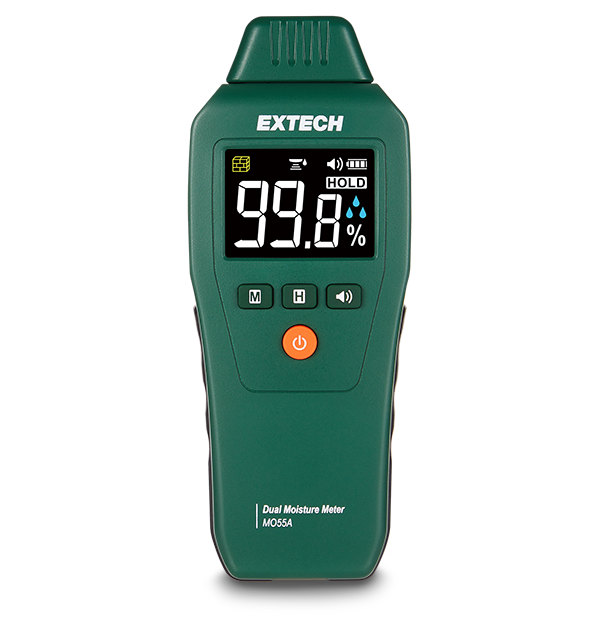

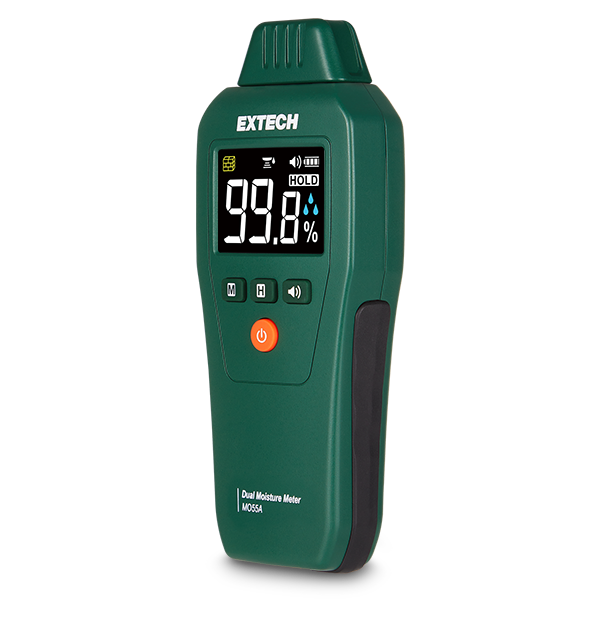

Extech MO55A
Combination Pin/Pinless Moisture Meter
- 建物の診断と屋内の空気質
Take quick moisture measurements from a variety of building materials using either the pin or pinless (non-invasive) method with the Extech MO55A. This easy-to-use moisture meter features a high-contrast color LCD with backlight for clear visibility in any environment. It uses intuitive display icons to indicate moisture levels and provides an audible alert that speeds up as moisture increases. Ideal for building restoration projects and applications where detecting moisture on floors, tiles, and under carpets is critical, the MO55A is also essential for analyzing the after-effects of water leakage behind walls and in ceilings.
仕様
| 一般仕様 | |
|---|---|
| WME水分含有量の基本精度（ピン） | ±(3% + 5 digits) at 22°C to 25°C (72°F to 77°F) |
| WME水分含有量の最大分解能（ピン） | 0.1% |
| WME水分含有量（ピン） | Wood Range: 5.0% to 50.0% Building Material Range: 1.5% to 33.0% |

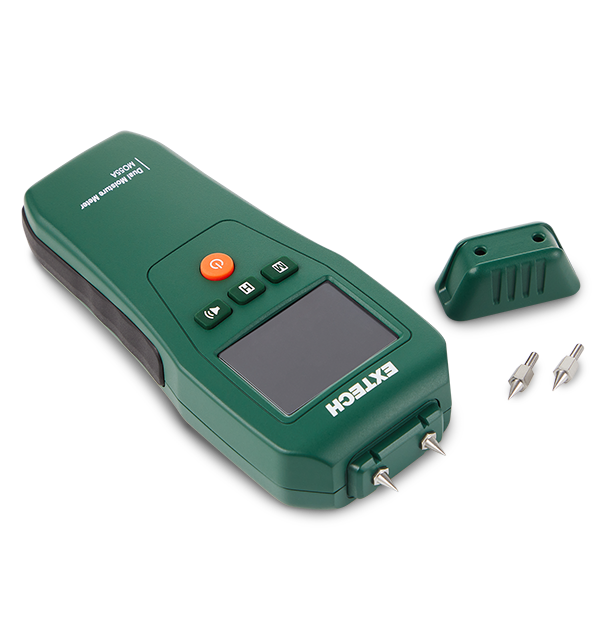

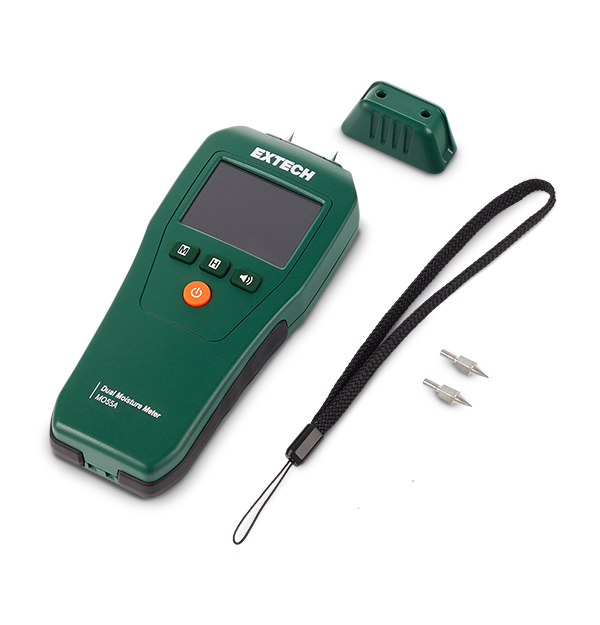

| センサータイプ | Replaceable threaded contact pins, 8 mm (0.3 in); non-penetrating electromagnetic sensor pad |
| 保存温度範囲 | 0°C to 50°C (32°F to 122°F); < 85% RH |
| 測定深さ | Pinless < 25 mm (1 in) |
| 相対水分含有量（ピンレス） | Wood: 0.0% to 99.9% Other building materials: 0.0% to 99.9% up to 25 mm (1 in) deep various with material under test |
| 計測原理 | Electrical resistance (pins); Capacitance (pinless) |

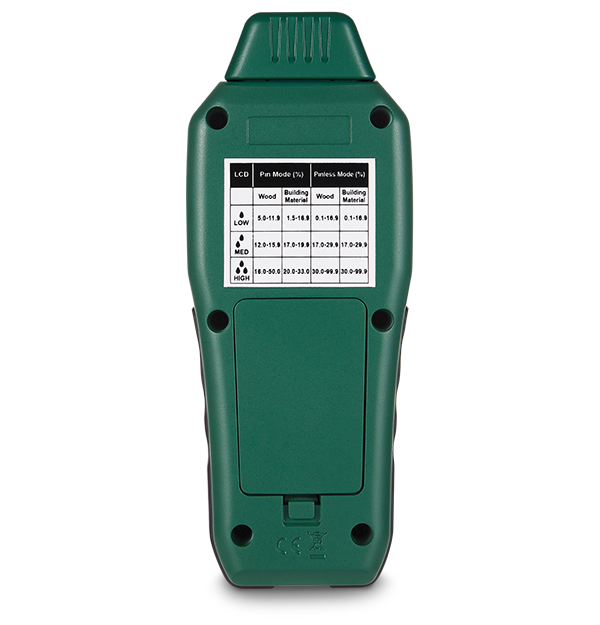

| 計測範囲 | Wood: Low: 1.5% to 16.9% Medium: 12% to 15.9% High: 16% to 50% Building Material Low: 1.5% to 16.9% Medium: 17% to 19.9% High: 20% to 33% |
| 追加の詳細 | |
|---|---|
| ディスプレイ | Backlit Color LCD |
| バッテリータイプ | 3 × 1.5 V, AAA batteries |
| 使用条件 | 5°C to 45°C (41°F to 113°F); < 80% RH |
| 保証 | 2 years |
| 出力 | Auto Power Off after approx. 3 minutes |
| 寸法 | 171.6 × 68 × 32.5 mm (6.7 × 2.7 × 1.3 in) |
| 認証 | CE, UKCA |
| 重量 | 151 g (0.33 lb) excluding batteries |
資料とサポート
User Manual
Extech MO55A 取扱説明書
