Discontinued

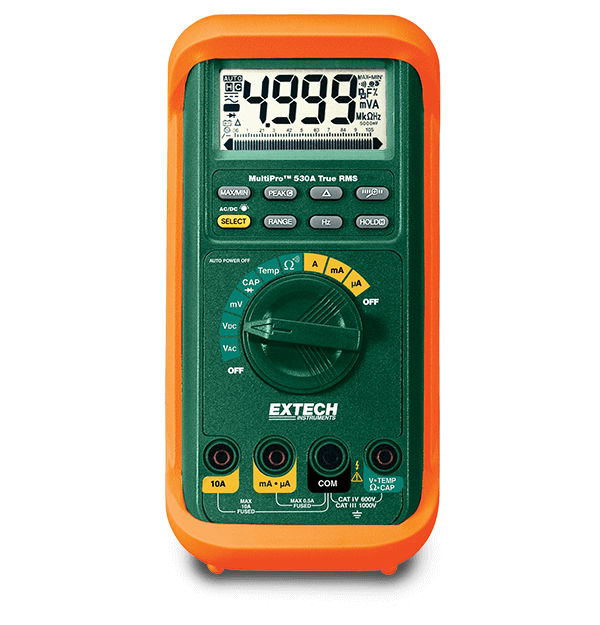

Extech MP530A
MultiPro® High-Performance MultiMeter
The Extech MP530A is a 5000 count, True RMS auto ranging Multimeter that measures AC/DC voltage and current, resistance, temperature, capacitance, and frequency with a 0.08% basic accuracy. Additional features include diode test, continuity check, auto power off, data hold, and low resistance auto lead zero, all on an easy to read, backlit display. Includes protective holster with built-in stand, test leads, Type K bead temperature probe, and 9 V battery.
仕様
| 一般仕様 | |
|---|---|
| AC電圧 | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| AC電圧の基本精度 | ±(0.8% of reading + 3 digits) |
| AC電圧の最大解像度 | 0.01mV |
| AC電流 | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| AC電流の基本精度 | ±(0.8% of reading + 4 digits) |
| AC電流の最大解像度 | 0.1µA |
| DC電圧 | 50mV, 500mV, 5V, 50V, 500V, 1000V |
| DC電圧の基本精度 | ±(0.08% of reading + 2 digits) |
| DC電圧の最大解像度 | 0.01mV |
| DC電流 | 500µA, 5000µA, 50mA, 500mA, 5A, 10A |
| DC電流の基本精度 | ±(0.2% of reading + 4 digits) |
| DC電流の最大解像度 | 0.1µA |
| 周波数 | 5Hz to 125kHz |
| 周波数の基本精度 | ±(0.01% of reading + 2 digits) |
| 周波数の最大分解能 | 0.001Hz |
| 抵抗 | 50Ω, 500Ω, 5kΩ, 50kΩ, 500kΩ, 5MΩ, 50MΩ |
| 抵抗の最大解像度 | 0.01Ω |
| 温度（タイプK）の最大分解能 | -58 to 1832 °F (-50 to 1000 °C ) |
| 温度（タイプN） | ±(0.3% of reading + 3 digits) |
| 温度（タイプN）の基本精度 | 1 °F/ °C |
| 真の実効値 | Yes |
| 電気容量 | 50nF ,500nF, 5µF, 50µF, 500µF, 9999µF |
| 静電容量最大解像度 | 0.01nF |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 1 × 9V battery |
| 安全性カテゴリー | CATIV - 600V |
| 寸法 | 7.32 × 3.42 × 1.39" (186 × 87 × 35.5mm) |
| 認証 | CE, UL |
| 重量 | 0.75lb (340g) |
