Discontinued

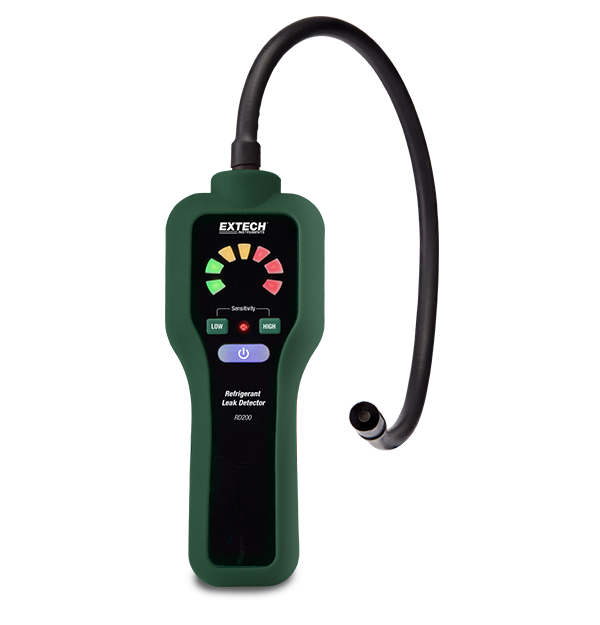

Extech RD200
Refrigerant Leak Detector
The Extech RD200 Refrigerant Leak Detector is easy to use and is ideal for detecting leaks from air-conditioning units and cooling systems that use all standard refrigerants. The multi-colored LED light bar indicates the level of refrigerant detected by the RD200. Features a field replaceable heated diode sensor and low/high sensitivity range selection for accurate leak detection. The 406 mm (16 in) flexible gooseneck provides easy access in difficult to reach locations.
仕様
| 一般仕様 | |
|---|---|
| ウォームアップ時間 | 2 minutes (approx.) |
| ガス検知 | SF6 electrical equipment and gas, HFC, CFC, HCFC refrigerants, HFC (R134 and R123), halogen gas, ethylene, tetrafluoroethylene, trichloroethylene, and most compounds containing halogen. |
| ガス検知感度 | High: 0.2oz/yr (6g/yr); Low: 1.05oz/yr (30g/yr) |
| センサータイプ | Heated Diode |
| プローブ長さ | 502mm (19.8") |
| 追加の詳細 | |
|---|---|
| 保証 | 2 years |
| 出力 | 1 × 9V battery |
| 寸法 | 7.3 × 2.8 × 1.4" (185 × 72 × 35mm) |
| 認証 | CE |
| 重量 | 10.8 oz (305g) |
