Discontinued

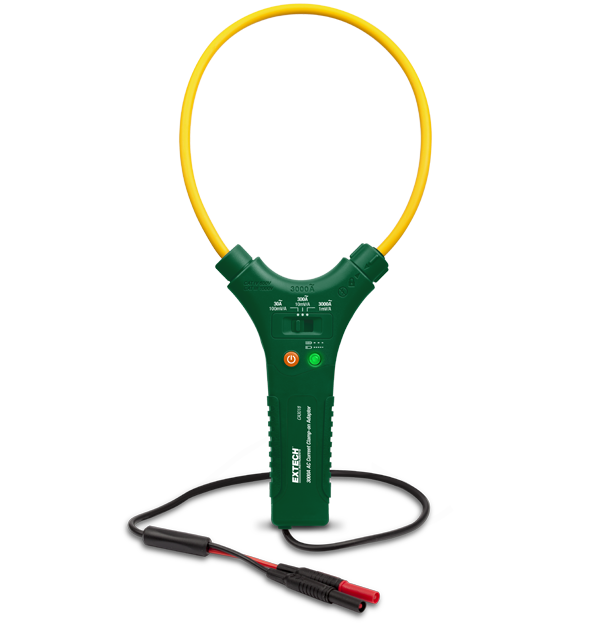

Extech CA3018
3000A AC Flex Clamp-on Adaptor
The Extech CA3018 is a 3000A AC flex clamp-on adaptor for multimeters and clamp on meters with standard sized banana plugs. The CA3018 is an 45.7 cm (18 in) flexible clamp capable of measuring AC Currents up to 3000 A. Complete with built-in flex clamp cable, 2 m (6.6 ft) lead with banana plugs, and two AAA batteries. UL listed with a CAT IV 600 V safety rating.
规格
| 一般参数 | |
|---|---|
| 交流电流 | 30.00A (100mV per Amp output); 300.0A (10mV per Amp output); 3000A (1mV per Amp output) |
| 交流电流基本精度 | ±3% full scale (45 to 500Hz) |
| 交流电流最大分辨率 | 0.01A |
| 钳口尺寸 | 18" (45.7cm) |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATIII - 1000V, CATIV - 600V |
| 尺寸 | 13.8 × 5.1 × 1" (350 × 130 × 25mm) |
| 电源 | 2 × AAA (1.5V) batteries |
| 认证 | CE, UL |
| 重量 | 7.1oz (200g) |
