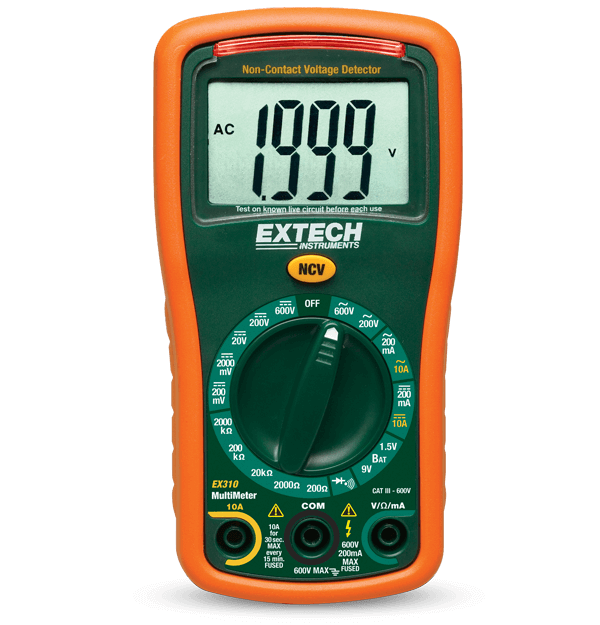

Extech EX310
9 Function Mini MultiMeter + Non-Contact Voltage Detector
The Extech EX310 is a compact manual ranging multi meter which features an extra-large 2000 count display and built-in non-contact AC voltage detector (NCV). AC/DC Voltage & Current, Resistance, Diode/Continuity measurements. Includes a battery test function (1.5 Volt and 9 Volt). The rubber holster protects the meter. UL listed Cat III – 600 Volt safety rating. Includes test leads, 9 Volt battery, and tilt stand.
规格
| 一般参数 | |
|---|---|
| UVA | 0 to 1.999mW/cm², 2 to 20.00mW/cm² |
| UVA 基本精度 | ±4% full scale |
| UVA 最大分辨率 | 0.001mW/cm² |
| 二极管测试 | Yes |
| 交流电压 | 0.1V to 600V |
| 交流电流 | 0.1mA to 10A |
| 导通性 | Yes |
| 电阻 | 0.1Ω to 2000kΩ |
| 直流电压 | 0.1mV to 600V |
| 直流电流 | 0.1mA to 10A |
| 非接触式试电笔 (NCV) | 100 to 600VAC |
| 其他详情 | |
|---|---|
| 保修 | 2 years |
| 安全等级 | CATII-1000V,CATIII-600V |
| 尺寸 | 5.5 × 2.3 × 1" (141 × 58 × 25mm) |
| 显示屏 | 2000-count segment LCD |
| 电源 | 3 × AAA (1.5V) batteries |
| 认证 | CE |
| 重量 | 5.6oz (160g) |
