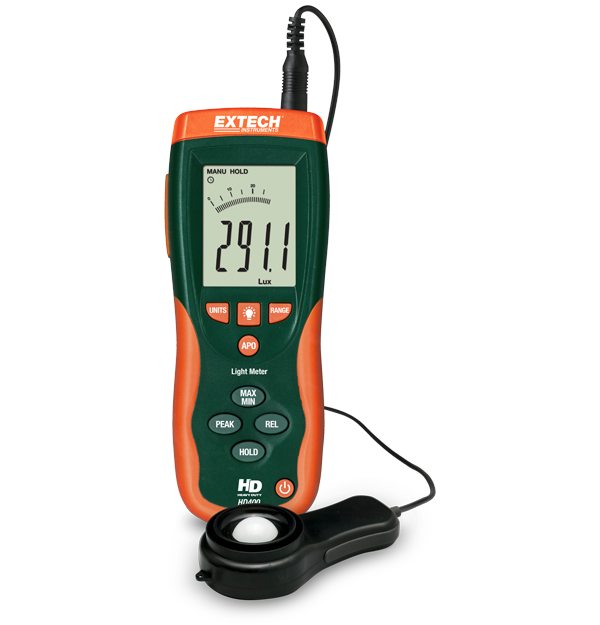

Extech HD400
Heavy Duty Light Meter
This product is discontinued.
We recommend the Extech HD450 as a great replacement.
Need support with the Extech HD400? Check out our support resources below.
The HD400 Heavy Duty Light Meter measures up to 400 kLux (40,000 Fc) with 0.1 Lux (0.01 Fc) resolution. It features a 5% accuracy, peak mode (10 µs), relative mode, min/max, and data hold functions. The HD400 has a backlit LCD display with a 40 segment bar graph and a rugged double molded housing. Comes complete with light sensor with 1 m (3ft) cable and protective cover, software with USB cable, hard carrying case, and 9 V battery.
Specifiche
| Specifiche generali | |
|---|---|
| Accuratezza di base luce (foot-candle) | ±5% |
| Accuratezza di base luce (lux) | ±5% |
| Correzione coseno e risposta spettrale | Yes |
| Interfaccia PC | USB with software included |
| Luce (foot-candle) | 40, 400, 4000, 40kFc |
| Luce (lux) | 400, 4000, 40k, 400kLux |
| Risoluzione max luce (foot-candle) | 0.01Fc |
| Risoluzione max luce (lux) | 0.1Lux |
| Ulteriori dettagli | |
|---|---|
| Alimentazione | 1 × 9V battery |
| Certificazioni | CE |
| Dimensioni | 6.7 × 3.1 × 1.6" (170 × 80 × 40mm) |
| Garanzia | 3 years |
| Peso | 13.7oz (390g) |
Risorse e supporto
Note: You must be logged in to download software or firmware. Login or create an account.
Software Download
Extech HD400 Software
User Manual
Manuale utente Extech HD400
Certification
Extech HD400 Declaration of Conformity
User Manual
Extech HD400 User Manual
Datasheet
Extech HD400-HD450 Datasheet
