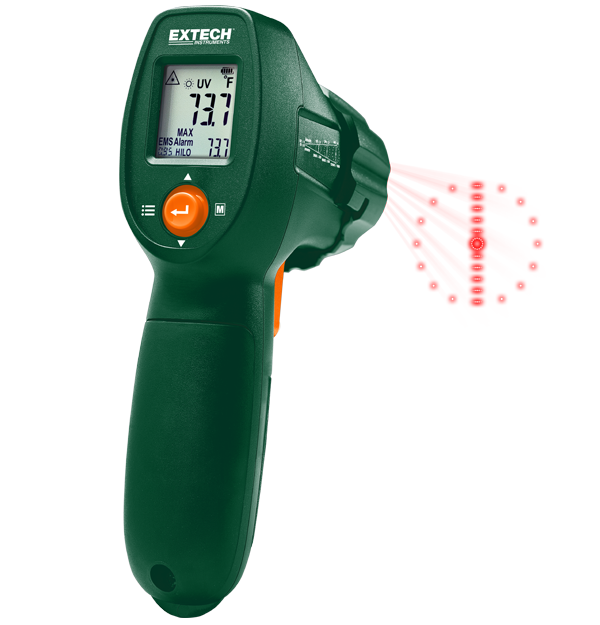

Extech IR300UV
IR Thermometer with UV Leak Detector
This product is discontinued.
We recommend the Extech IR267 as a great replacement.
Need support with the Extech IR300UV? Check out our support resources below.
The Extech IR300UV is a professional 4-in-1 IR Thermometer, UV Leak Detector, bright flashlight, and a unique coaxial distance to spot guidance laser. This combination meter helps you take quick temperature readings on unsafe surfaces while the circular laser shows you the area being measured to maintain accurate measurement distance. Its UV light easily reveals refrigerant leaks in combination with a standard UV dye (not included) on AC units, pipes, and automotives. Convenient built-in bright flashlight will help you do your job in dark environment. Complete with three AA batteries.
Specifications
| General | |
|---|---|
| Distance to Target Ratio | 12:1 |
| Emissivity | 0.10 to 1.00, adjustable |
| Repeatability | ±0.8% of reading or ±2 °F/ ±1 °C (whichever is greater) |
| Targeting | coaxial laser pattern |
| Temperature (IR) Basic Accuracy | -22 to 932 °F (-30 to 500 °C) |
| Temperature (IR) Max Resolution | ±1.5% of reading or ±3 °F/ ±1.5 °C (whichever is greater) |
| Temperature (RTD) | 0.2 °F, 0.1 °C |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 4.1 × 2.1 × 7.3" (104 × 54 × 185mm) |
| Power | 3 × AA (1.5V) batteries |
| Warranty | 3 years |
| Weight | 10.6oz (300g) |
Resources & Support
User Manual
Extech IR300UV User Manual
Datasheet
Extech IR300UV Datasheet
Certification
Extech IR300UV Declaration of Conformity
