Extech HD400
Heavy Duty Light Meter
This product is discontinued.
We recommend the Extech HD450 as a great replacement.
Need support with the Extech HD400? Check out our support resources below.

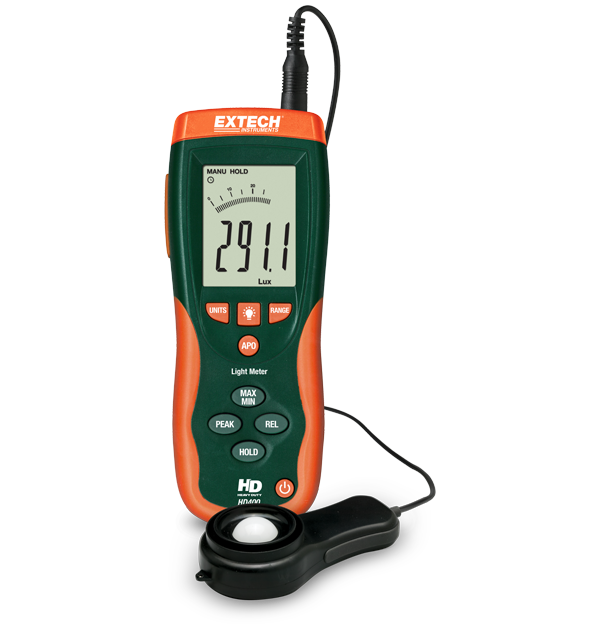

The HD400 Heavy Duty Light Meter measures up to 400 kLux (40,000 Fc) with 0.1 Lux (0.01 Fc) resolution. It features a 5% accuracy, peak mode (10 µs), relative mode, min/max, and data hold functions. The HD400 has a backlit LCD display with a 40 segment bar graph and a rugged double molded housing. Comes complete with light sensor with 1 m (3ft) cable and protective cover, software with USB cable, hard carrying case, and 9 V battery.
Especificações
| Especificações gerais | |
|---|---|
| Cosseno e cor corrigida | Yes |
| Interface para PC | USB with software included |
| Luz (Lux) | 400, 4000, 40k, 400kLux |
| Luz (vela) | 40, 400, 4000, 40kFc |
| Precisão básica da luz (Lux) | ±5% |
| Precisão básica da luz (vela) | ±5% |
| Resolução máx. da luz (Lux) | 0.1Lux |
| Resolução máx. da luz (vela) | 0.01Fc |
| Detalhes adicionais | |
|---|---|
| Certificações | CE |
| Dimensões | 6.7 × 3.1 × 1.6" (170 × 80 × 40mm) |
| Garantia | 3 years |
| Peso | 13.7oz (390g) |
| Potência | 1 × 9V battery |
Recursos e suporte
Observação: Você deve estar conectado para baixar software ou firmware. Faça login ou crie uma conta.
Software Download
Extech HD400 Software
Certification
Extech HD400 Declaration of Conformity
User Manual
Extech HD400 User Manual
Datasheet
Extech HD400-HD450 Datasheet
